- 1
EFFICIENCY
Applications
The KOR series is engineered for workshops, production facilities, and industrial applications requiring a robust and dependable compressed air supply.
RELIABILITY
Cast iron
Fully cast‑iron mechanical components and stainless‑steel valves ensure long‑term durability, strength, and reliable performance in demanding conditions.
DESIGN
Practicality
Certified air receiver tanks complete a design that balances mechanical resilience and practicality, making the series ready for real‑world industrial use.
Heavy‑duty cast iron pump design

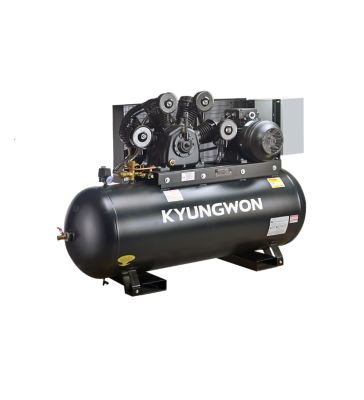

At the core of the KOR series is a slow‑running cast‑iron piston pump engineered for maximum durability and long service life. Key components such as the crankshaft, connecting rods, cylinders, and cylinder heads are made entirely of cast iron, significantly reducing vibration and wear during continuous operation. This robust mechanical design ensures stable performance and reliable operation in demanding industrial environments.
Why KOR series stands out
The KOR series is the ideal solution for users requiring maximum durability, mechanical strength, and long service life from a piston compressor. Its full cast‑iron construction, proven Condor pressure switch, and certified tank design ensure reliable performance with minimal maintenance, making it a cost‑effective choice for demanding industrial applications.
- Power range: 5.5-20 HP
- Cast‑iron, slow‑speed piston pumps
- IE3, IP55 electric motors
- Condor pressure switch on all models
- Tank sizes: 270 L/500 L (certified)
- Heavy‑duty industrial construction
- 270 L or 500 L certified air receiver tanks
- Electrical control panel with star‑delta starter (15-20 HP)
- Forklift slots for fixed installation
- MEPS‑compliant configurations
Get in touch today!
Contact us today to learn more about this product or any other compressed air solution for your operations. Our experts are ready to assist you in finding the perfect compressor solution to meet your specific needs. Enhance your efficiency, reduce your costs, and invest in a reliable compressor that will serve you for years to come. Get in touch now and take the first step towards superior performance and energy savings.
Technical data
INSTALLED POWER
5.5-20
With installed power ranging from 5.5 to 20 HP, the KOR series supports a wide range of industrial applications.
TANK CAPACITY
270-500
270-500 L certified air receiver tanks enable longer duty cycles and reduced start‑stop frequency.
PRESSURE
10
The KOR series provides stable compressed air, suitable for most industrial pneumatic systems.
| Model | Pressure (bar) |
Free Air Delivery (l/min) |
Motor power (kW/HP) |
V/Ph/Hz |
|---|---|---|---|---|
| KOR4E | 10 | 388 | 4/5,5 | 380/3/60 |
| KOR6E | 10 | 521 | 5,5/7,5 | 380/3/60 |
| KOR8E | 10 | 766 | 7,5/10 | 380/3/60 |
| KOR10E | 10 | 1101 | 11/15 | 380/3/60 |
| KOR15E | 10 | 1400 | 15/20 | 380/3/60 |

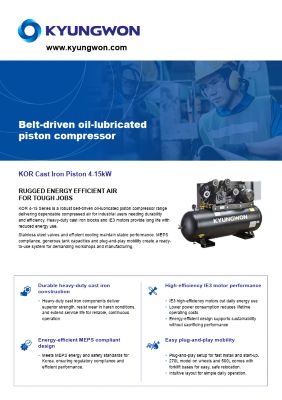

For full technical specification and more information refer to product brochure
KOR series
Full product range
- Filename
- KyungWon_KOR_leaflet_LR_EN.pdf
- Size
- 340 KB
- Format
