- 3
CLEAN AIR
Pure Oil-Free Air
The KAT(V) compressors deliver high-quality compressed air for sensitive applications.
EFFICIENCY
Energy-saving Design
Advanced air-end and coating technology ensure high energy efficiency over extended operating periods.
RELIABILITY
Long-Life Components
The KAT(V) compressor is designed for a low footprint and easy installation, helping you save valuable space in your compressor room.
Advanced VSD technology
As energy accounts for more than 70% of a compressor’s lifecycle costs (LCC), it represents a critical factor in system design and operation. The most cost-effective compressed air solution optimizes pressure, flow rate, and air treatment requirements for each production process.
KAT(V) compressors provide an integrated solution designed to reduce energy consumption, with average electricity savings of up to 35%. To support energy efficiency across different operating requirements, the VSD range has been expanded to include the 18 VSD and 55 VSD models, covering both low- and high-capacity applications.
Why KAT(V) series stands out
Oil-free tooth technology remains highly competitive among dry compression technologies within this power range in terms of efficiency. KAT(V) 15-55 units represent a reliable solution in this power range for oil-free compressors. They deliver clean, dry, high-quality air while maintaining optimal energy efficiency.
- Oil-Free Air
- Energy >70% of lifecycle costs (LCC)
- Critical factor in system efficiency
- Optimized pressure, flow rate and air treatment
- Integrated energy-efficient solution
- Up to 35% energy savings (operating conditions dependent)
- Air- or water-cooled configurations
- Custom gear ratios for specific applications
- Remote monitoring capabilities
Get in touch today!
Contact us today to learn more about this product or any other compressed air solution for your operations. Our experts are ready to assist you in finding the perfect compressor solution to meet your specific needs. Enhance your efficiency, reduce your costs, and invest in a reliable compressor that will serve you for years to come. Get in touch now and take the first step towards superior performance and energy savings.
Technical data
INSTALLED POWER
15-55
With installed power ranging from 15 to 55 kW, the KAT(V) series provides robust performance for demanding applications.
FAD
8.55
The series delivers an airflow range of 2.26-8.55 m³/min, meeting the requirements of medium- to large-scale operations.
PRESSURE
7.5-10
The KAT(V) series operates at 7.5-10 bar, ensuring flexible performance across a wide range of industrial applications.
| Model | Cooled | Max pressure (bar) |
Effective pressure (bar) |
Free Air Delivery (m³/min) |
|---|---|---|---|---|
| KAT20 | Air | 7,5/8,6/10 | 7/8/9,5 | 2,26/2,06/1,85 |
| KAT25 | Air | 7,5/8,6/10 | 7/8/9,5 | 2,92/2,74/2,32 |
| KAT30 | Air | 7,5/8,6/10 | 7/8/9,5 | 3,55/3,23/2,74 |
| KAT40 | Air | 7,5/8,6 | 7/8 | 4,79/4,60 |
| KAT50 | Air | 7,5/8,6 | 7/8 | 5,82/5,57 |
| KAT60 | Air | 7,5/8,6 | 7/8 | 6,82/6,51 |
| KAT30V | Air | 10 | 7 | 3,38 |
| KAT50V | Air | 8,6 | 7 | 6,07 |
| KAT75V | Air | 8,6 | 7 | 8,55 |

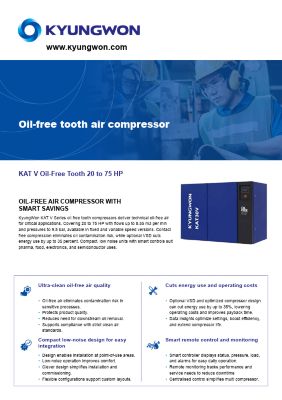

For full technical specification and more information refer to product brochure
KAT(V) series
Full product range
- Filename
- KyungWon_KAT_V_leaflet_LR_EN.pdf
- Size
- 321 KB
- Format
