Oil-free Scroll compressor

AL A Series

Our AL A series is an all-in-one series that provides clean, oil-free compressed air thanks to an integrated dryer, filter and tank. It guarantees air quality that complies with the most stringent standards, making it ideal for certain industries such as medical and food processing.

Purity

100% clean air

Stainless tank and advanced filtration guarantee clean, oil-free air for sensitive applications like medical and food.

Compact

Compact design

All-in-one configuration minimizes footprint, making installation simple even in tight spaces.

Low noise

49 dB(A)

This range is particularly quiet, ensuring excellent working comfort throughout daily use.

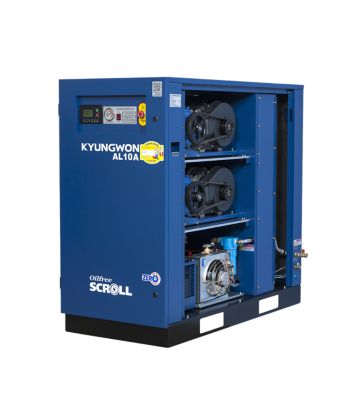

PRODUCT OVERVIEW

All-in-one oil-free solution

The AL A series eliminates the need for complex air piping networks and reduces installation costs thanks to its comprehensive all‑in‑one solution, which combines a compressor, dryer, filter, and tank in a single streamlined system. Its oil‑free scroll technology ensures superior air quality, making it ideal for critical sectors such as medical, semiconductor, and food processing. Air quality is guaranteed by a 10°C pressure dew point and 5‑micron filtration.

Its compact dimensions allow installation in confined spaces, while the low noise level means it can be installed close to workplaces. As a result, installation requirements are minimal. Available in models ranging from 3 to 10 HP, the AL A series offers great flexibility for a wide range of applications, combining efficiency, reliability, and superior air purity in a single package.

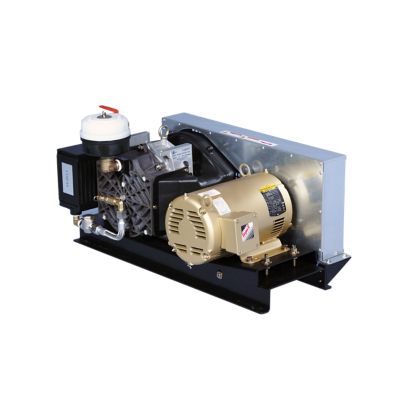

Advanced oil-free scroll technology

The AL A series uses oil‑free scroll compression, eliminating the risk of contamination and ensuring air quality. This technology reduces maintenance requirements, improves energy efficiency, and delivers consistent performance for critical environments such as hospitals and cleanrooms.

Committed to Excellence, Focused on You

We’re committed to delivering more than just quality products, your satisfaction is our top priority. Every service and solution we provide is centered around meeting your needs. We measure our success by your trust, continually striving to exceed your expectations.

Contact your expert today !

FULL OF FEATURES

All-in-one system and oil-free operation

All-in-one system - The AL A series integrates all essential components into a single compact design, simplifying installation and reducing costs. No additional piping is required, making it ideal for facilities where space and efficiency are priorities.

Oil-free operation - Scroll technology delivers 100% oil-free air. This ensures zero contamination for sensitive applications.

Why the AL A series stands out

The AL A range eliminates the need to purchase multiple components to assemble an installation. Its all‑in‑one configuration delivers a high level of convenience and reliability, reducing installation complexity while ensuring excellent air quality. Low noise levels, minimal maintenance requirements, and proven scroll technology make the AL A range a reliable solution for industries requiring high standards of purity and efficiency.

MORE FEATURES

Compact dimensions and quiet operation

Compact dimensions - With dimensions starting from 700 × 770 × 1486 mm, the AL A series is designed for installation in confined spaces, helping to simplify system layout and installation.

Quiet operation - With sound levels of just 49–53 dB(A), this range ensures a quiet working environment, making it suitable for noise‑sensitive applications such as hospitals and offices.

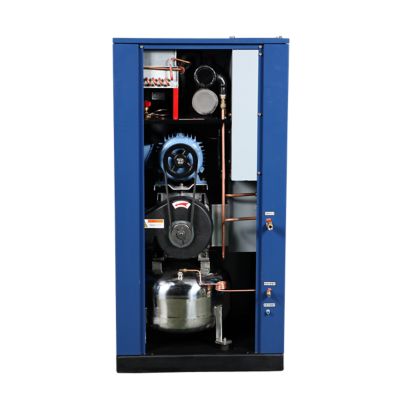

Integrated compressor, dryer, filter, and tank
Oil-free scroll technology
Dew point: 10°C, filtration: 5 micron
Stainless steel tank for clean air
Compact design for limited spaces
Low noise: 49–53 dB(A)
Models: AL3A, AL5A, AL7A, AL10A (3–10HP)

Optional larger receiver tank (74L for 7.5–10HP models)
Moving caster for mobility
Voltage configurations (220V, 380V, 440V).

Get in touch today!

Finding the ideal oil-free compressor for your business doesn't have to be complicated. Our specialists are here to simplify the process, ensuring you get a compressor that meets your exact needs. Reach out today for expert advice and customized solutions tailored just for you.

Technical data

INSTALLED POWER

3-10

With installed power ranging from 3 to 10 HP, the AL A series accommodates various industrial requirements.

FAD

840

With Free Air Delivery (FAD) up to 840 LPM, the AL A ensures a reliable supply of compressed air for diverse applications.

PRESSURE

8-9.9

AL A operates at 8-9.9 bar for stable performance across diverse industrial applications.

Model	Max. pressure (bar)	Capacity (LPM)	Motor power (kW/HP)	Noise level (dB(A))
AL3A	8/9.9	271/219	2.2/3	49
AL5A	8/9.9	420/352	3.7/5	50
AL7A	8/9.9	691/571	2.2x1/3x1	52
AL7A	8/9.9	691/571	3.7x1/5x1	52
AL10A	8/9.9	840/704	3.7x2/5x2	53

For full technical specification and more information refer to product brochure

AL A series

Full product range

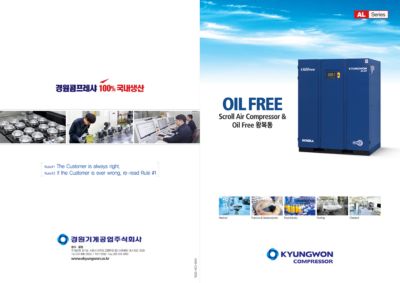

Filename: KyungWon_AL_A_leaflet_LR.pdf
Size: 20 MB
Format: pdf

Download

Contact us!

Want more advice on oil-free compressors, or need help selecting the right oil-free compressor setup for your operations? Contact us today for advice that’s customised to fit your operation.
