Purity
100% clean air
The series provides oil-free air for sensitive applications like medical, food and electronics, ensuring contamination-free system.
COMFORT
Low Noise
Scroll technology and vibration-proof design reduce noise to as low as 50 dB(A), creating a quiet and safe working environment.
Efficiency
Energy savings
Sequential and multi‑step control optimize power use, significantly reducing energy costs while maintaining consistent air supply.

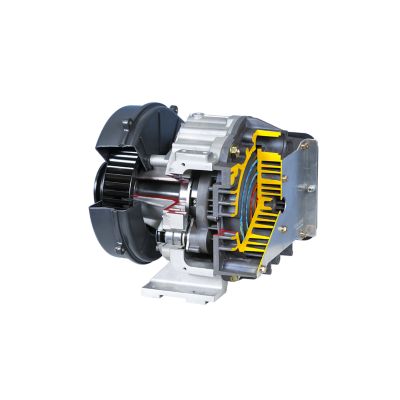

Oil-free scroll compression technology
KyungWon oil‑free scroll technology delivers uncompromised air purity by fully eliminating oil from the compression process. The scroll compression mechanism operates with minimal torque variation, significantly reducing vibration and noise while supporting stable, reliable performance.
Why Choose the AL series stands out
The AL series provides a comprehensive solution combining air purity, energy efficiency, and ease of use. Featuring a modular design and a wide capacity range, it can be configured to suit diverse applications, from medical facilities to high‑tech manufacturing. Supported by advanced technology and proven reliability, the AL series delivers consistent, long‑term performance.
- Oil-free scroll technology
- Noise levels as low as 50 dB(A)
- Energy-saving sequential and multi-steps control
- Durable airend with minimal parts
- Intelligent Micom controller with multilingual support
- Wide capacity range: 3HP to 60HP
- Compact design for space efficiency
- Tank-mounted
- Dental configuration

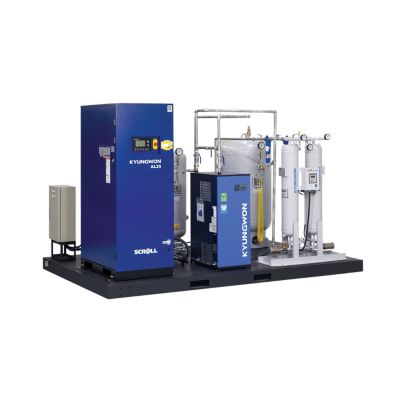

- All-in-one design
- Optional accessories include air storage tanks, filters, and advanced controllers
Get in touch today!
Finding the ideal oil-free compressor for your business doesn't have to be complicated. Our specialists are here to simplify the process, ensuring you get a compressor that meets your exact needs. Reach out today for expert advice and customized solutions tailored just for you.
Technical data
INSTALLED POWER
3-60
With installed power ranging from 3 to 60 HP, the AL series accommodates various industrial requirements.
FAD
5040
The range handles flow rates from 219 to 5040 LPM, covering small clinics to large industrial setups with reliable air supply.
PRESSURE
9.9
AL series operates from 8 up to 9.9 bar, delivering stable pressure for applications requiring clean compressed air.
| Model | Max. pressure (bar) | Capacity (LPM) | Motor power (kW/HP) | Noise level (dB(A)) |
|---|---|---|---|---|
| AL3 | 8/9.9 | 271/219 | 2.2/3 | 50 |
| AL5 | 8/9.9 | 420/352 | 3.7/5 | 50 |
| AL7 | 8/9.9 | 691/571 | 2.2x1/3x1 | 52 |
| 3.7x1/5x1 | ||||
| AL10 | 8/9.9 | 840/704 | 3.7x2/5x2 | 53 |
| AL15 | 8/9.9 | 1260/1056 | 3.7x3/5x3 | 56 |
| AL20 | 8/9.9 | 1680/1408 | 3.7x4/5x4 | 58 |
| AL25 | 8/9.9 | 2100/1760 | 3.7x5/5x5 | 59 |
| AL30 | 8/9.9 | 2520/2112 | 3.7x6/5x6 | 62 |
| AL40 | 8/9.9 | 3360/2816 | 3.7x8/5x8 | 63 |
| AL50 | 8/9.9 | 4200/3520 | 3.7x10/5x10 | 65 |
| AL60 | 8/9.9 | 5040/4224 | 3.7x12/5x12 | 88 |

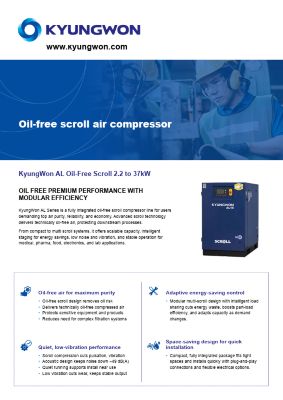

For full technical specification and more information refer to product brochure
