EFFICIENCY
High energy output
Optimised rotor clearance, IE5 PMSM motors and our own inverter control maximise efficiency across a wide operating pressure range.
RELIABILITY
Built for longevity
Triple sealing, direct drive design and controlled oil temperature ensure long bearing life and stable performance.
CONTROL
Smart operation monitoring
Integrated compressor and inverter control via a 7‑inch touch HMI provides real‑time monitoring and easy system setup.

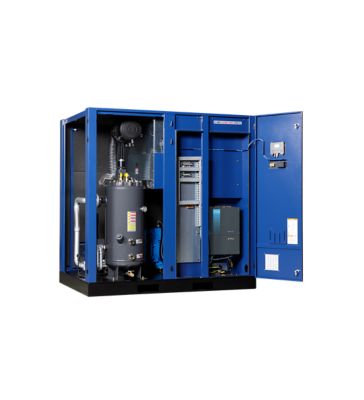

PMSM direct drive system
The MS series applies a PMSM‑air‑end direct drive structure, eliminating transmission losses associated with belts or gears. The 4‑pole direct coupling improves mechanical efficiency while extending bearing life. Combined with IE5‑class motors and inverter control, the system delivers a wide constant‑torque operating range from 5 to 9.5 bar.
Why MS series stands out
The MS series is engineered as a dedicated compressor platform rather than a modified standard design. Its exclusive air‑end, direct drive and compressor‑specific inverter control deliver measurable efficiency gains, stable pressure and long service life. Backed by a 5‑year air‑end warranty, it is a reliable solution for demanding industrial applications.
- MS Series exclusive air‑end
- 4‑pole direct drive design
- Triple sealing system
- IE5 high‑efficiency motor (VSD)
- Compressor specific inverter control
- Wide pressure range 5-9.5 bar
- Integrated compressor and fan control
- Optimised suction filter and AOS capacity
- High‑efficiency turbo cooling fan
- Variable speed
- Wide capacity range MS30-MS400
- Multiple motor power configurations
Get in touch today!
Contact us today to learn more about this product or any other compressed air solution for your operations. Our experts are ready to assist you in finding the perfect compressor solution to meet your specific needs. Enhance your efficiency, reduce your costs, and invest in a reliable compressor that will serve you for years to come. Get in touch now and take the first step towards superior performance and energy savings.
Technical data
EFFICIENCY GAIN
IE5
IE5‑class PMSM motors and optimised air‑end design deliver high efficiency that meets US Department of Energy standards.
PRESSURE RANGE
5-9.5
Wide operating pressure range allows stable performance across varying demand without sacrificing efficiency.
WARRANTY
5
The MS series air‑end is covered by a 5‑year warranty when genuine parts are used, ensuring long‑term reliability.
| Model | Pressure options (bar) |
Free Air Delivery (m³/min) |
Installed power (kW) |
Dimensions (mm) |
|---|---|---|---|---|
| MS30PV | 5-9.5 | 1.40-4.21 |
22 | 1500x1000x1350 |
| MS50PV |
5-9.5 | 1.41-7.79 |
37 | 1660x1100x1607 |
| MS75PV |
5-9.5 | 1.45-11.38 |
55 | 2000x1350x2000 |
| MS100PV |
5-9.5 | 2.05-15.49 |
75 | 2000x1350x2000 |
| MS125PV |
8.5 | 6.34-15.9 |
93 | 3075x1470x2156 |
| MS150V | 8.5 | 8.15-204 | 110 | 3225x1470x2156 |
| MS200V | 8.5 | 10.87-27.2 | 150 | 3225x1640x2156 |
| MS300KV | 8.5 | 19 .25-38.5 | 110 | 4240x2000x2250 |
| MS400KV | 8.5 | 24 .4-48.8 | 150 | 4240x2000x2250 |

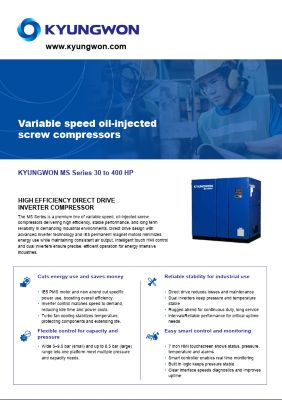

For full technical specification and more information refer to product brochure
